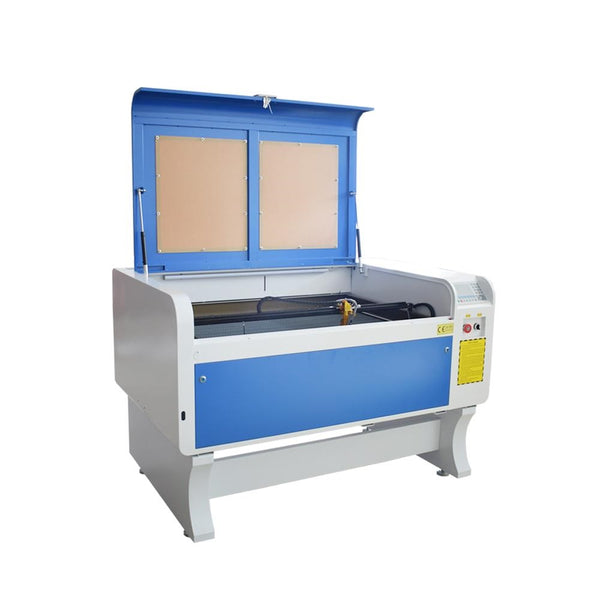

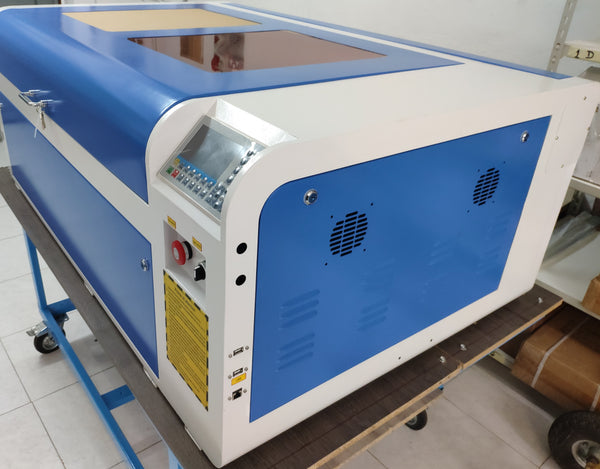

Affordable CNC CO2 type laser engraving and cutting machine for soft materials.
- Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
- USB Interface
- Air Assist, Remove heat and combustible gases from the cutting surface.18W Air pump, flow can be 38L/Min.
- Complete with extractor fan.
- Rotary 4th Axis included to Engrave on any cylindrical object.
- Powerful 100w laser tube

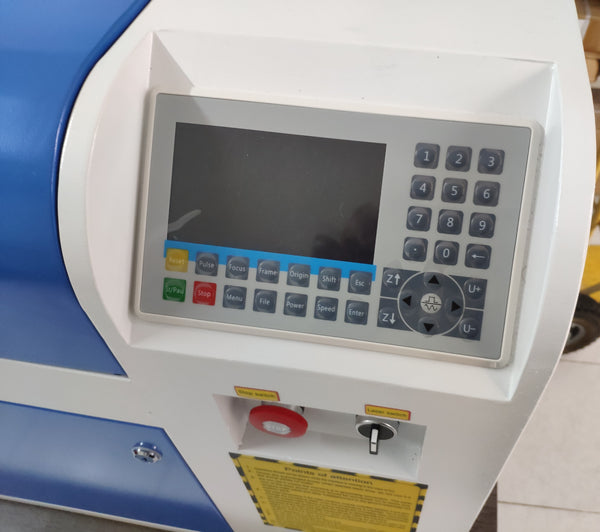

- Advanced easy to use DSP Control Panel, Set Speed, power and more controls directly from the laser.

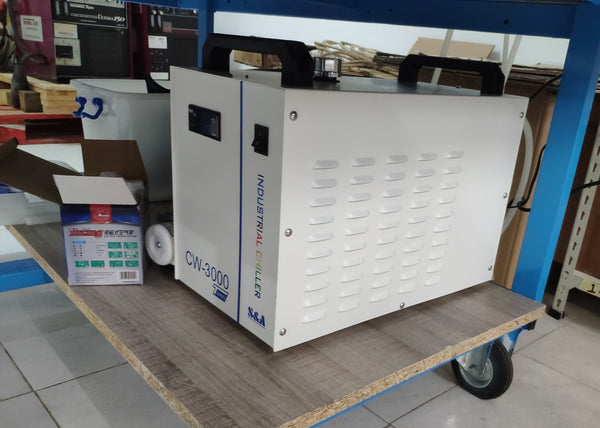

- Water Cooling and Protection System with industrial chiller. With jam-proof heat exchanger, water flow detection alarm, over temperature alarm.
- Laser position.
- Emergency Stop Button.
- Larger Size, 600*1000mm working area.
- Lifting platform is electric control, 0-25cm.
- Laser focal length: 5CM
- Complete with CE safety standards.
|
SH-1060 100W Desktop CO2 Laser Engraving Cutting Machine |
|
| Laser power | 100W |
| Laser type | CO2 laser engraving machine |
| Power supply | AC 220V/110V |
| Working area | 600*1000 mm |
| Engraving depth | 0-10 mm (different material differ) |
| Cutting depth | 0-10 mm |
| Engraving speed | 0-600mm/s |
| Cutting speed | 0-600mm/s |

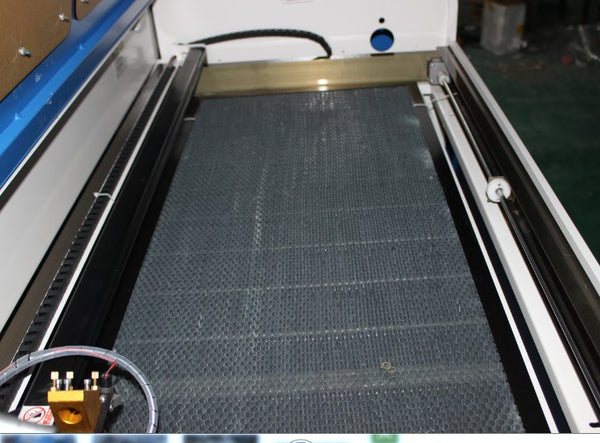

| Lifting platform | 0-250 mm Honeycomb Worktable |
| Locating precision | <0.01 mm |
| Min shaping character | Character: 2*2mm, Letter: 1*1mm |
| Working temperature | 5℃-45℃ |
| Working humidity | 5%-95% |
| Resolution ratio | ≤1000dpi |
| Data transfer interface | USB 2.0 (offline) |
| Cooling | Water Cooling and protection industrial chiller |
| Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
| (BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF | |
| Compatible software | CorelDraw,WinsealXP |
| Color separation | NO |
| Sloping engraving | NO |
| Protection | Emergency stop button and Stop working when water is not detected. |
| Machine Dimensions | 140*75*58 cm |
| Packing | Wooden box with foam inside |
| Package Dimension | 157*94*78 cm |
| Package Weight | 230 kg (Counted by volumetric weight ) |
