STUDENT SH-300 MINI BENCH LATHE MACHINE.
Perfect for the demanding model engineer, production of small parts, training purposes, beginners, model making and watchmakers.
Main Features:
- VFD system for VARIABLE SPEED CONTROL (50-2500 RPM) with powerful 550w motor.
- Brushless AC motor.
- High precision.
- All gears are of metal.
- Metric and inch thread cutting.
- 21mm spindle bore.

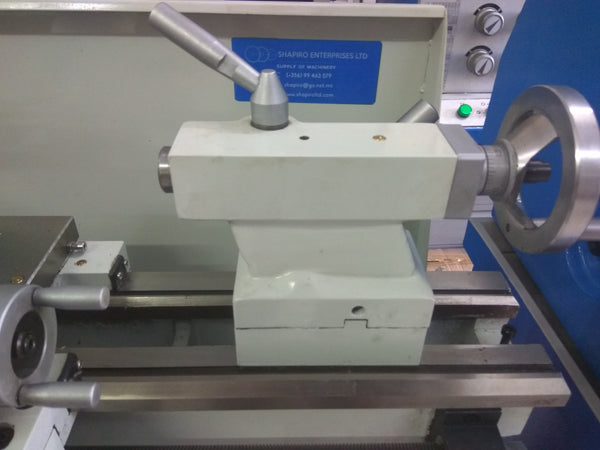

- Quick lock/unlock of tailstock.
- Hand wheels are made all of aluminum for maximum durability
- Low noise.
- CE standards.
Standard accessories:
- 4 JAW INDEPENDENT CHUCK Diameter 100MM
- 3 JAW SELF CENTERING LATHE CHUCK Diameter 100MM
- SET OF CUTTING TOOLS 8 PIECES.
- FIXED CENTERS.
- Tool Box.
| SPECIFICATIONS | |
|---|---|
| DISTANCE BETWEEN CENTERS | 300mm |
| SWING OVER BED | 180mm |
| SWING OVER CROSS SLIDE | 110mm |
| SPINDLE TAPER | MT3 |
| TAILSTOCK BARREL TAPER | MT2 |
| SPINDLE BORE | 21mm |
| CROSS SLIDE TRAVEL | 75mm |
| COMPOUND TRAVEL | 55mm |
| RANGE OF METRIC THREADS | 0.5-3mm (nos10) |
| SPINDLE SPEED | Variable 50-2500rpm |
| POWER OF MOTOR | 550w |
| GROSS WEIGHT | approx 50kgs |
| RANGE OF IMPERIAL THREADS | 8-44tpi (nos8) |
| TAILSTOCK QUILL TRAVEL | 60mm |
