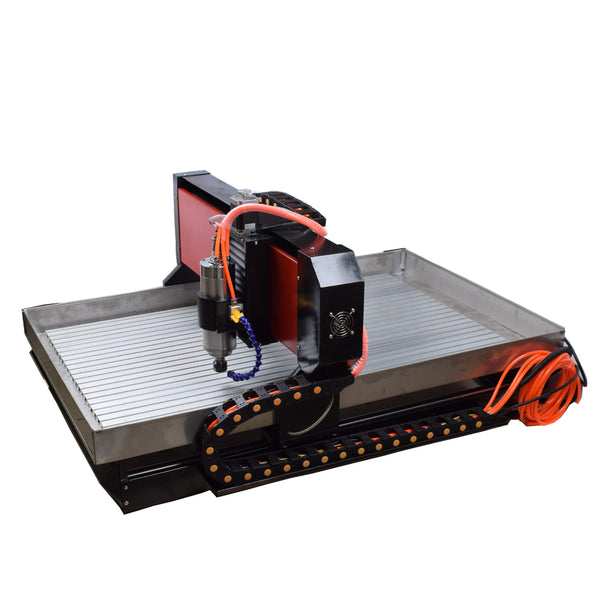

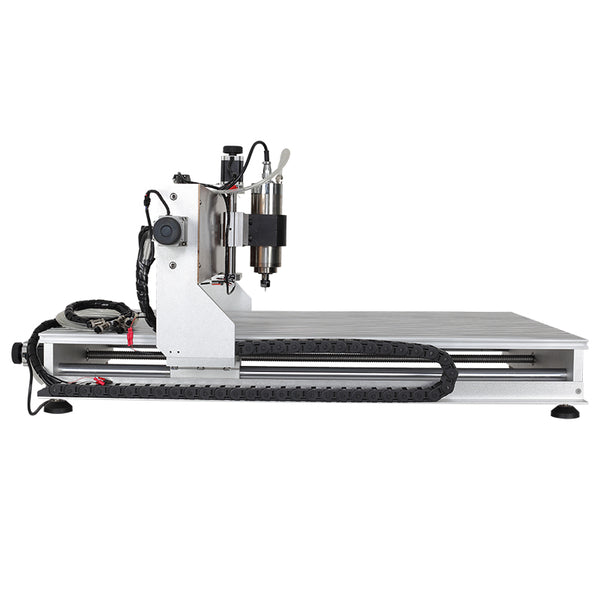

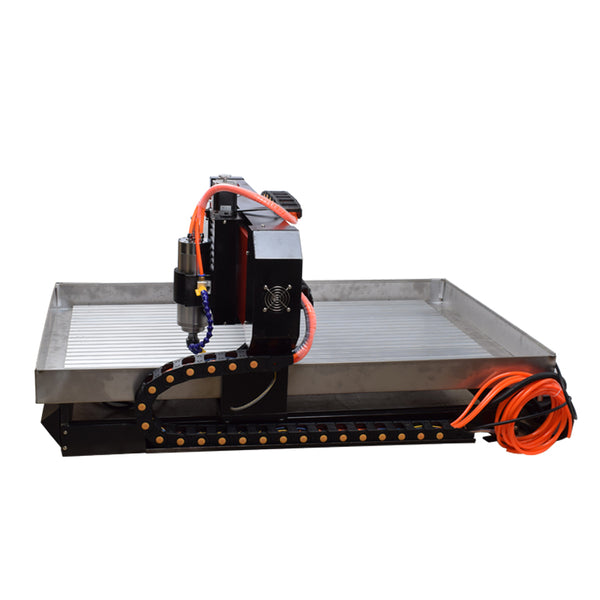

3 Axis CNC router 6090 machine steel frame type features
Newly developed machine with steel frame body construction for more rigidity.
With this new developed frame machine can engrave on metal materials.
- Powerful 2200W water cooled spindle motor
- Large working area.
- With latest DSP controller. Very easy to use. Non need of computer to run the machine.
- This 3 axis CNC version can updated into 4 axis CNC router easily.(You just need to buy the 4th axis to install than use.)
- Ball screw high precision.
- Independent power supply for main board.
- Limited switch added.
- Auto-Checking function.
Technical data
|
Effective working travel |
600(X)mm*900(Y)mm*150(Z)mm |
|
Shape dimension |
890*1250*670mm |
|
Frame materials |
#45 steel |
|
Axis |
3 Axis version |
|
Acceptable material thickness |
≤150mm |
|
Driving units |
X,Z SFUR1605-DFC7-P0 ball screw, Y SFUR2005-DFC7-P0 ball screw |
|
Sliding units X Axis |
Dia.30mm chrome plate shafts |
|
Sliding units Y Axis |
Dia.30mm chrome plate shafts |
|
Sliding units Z axis |
Dia.16mm chrome plate shafts |
|
Stepping motor type |
57 two-phase 3A 150N.cm |
|
Spindle motor |
Changlong GDZ80-2.2, 24000RPM, 2200W |
|
Principal axis collet |
ER20 1-13mm |
|
Repeat accuracy |
0.05mm |
|
Spindle precision |
radial beat acuities 0.03 mm |
|
Maximum speed |
0-4000mm/min |
|
Control unit |
E100S2R2B + JMC542 drive board+1635A 4th Axis drive board + DSP Controller |
|
Computer connection |
DSP control No need connect computer |
|
Command code |
G code, or any MACH3 support format file |
|
Protection |
Emergency stop button |
|
Operating Voltage |
AC220V |
|
Accessories |
Pump, Auto checking tool , cutter, banner and so on. |
|
Warranty |
Two Year |
|
Package size |
One wooden box package , 121*86*82cm |
|
Gross weight |
176KG |
