CNC ROUTER 9060 3AXIS

Product Code: 60090/3

PRICES SHOWN ARE EXCLUDING VAT

Regular price €0,00

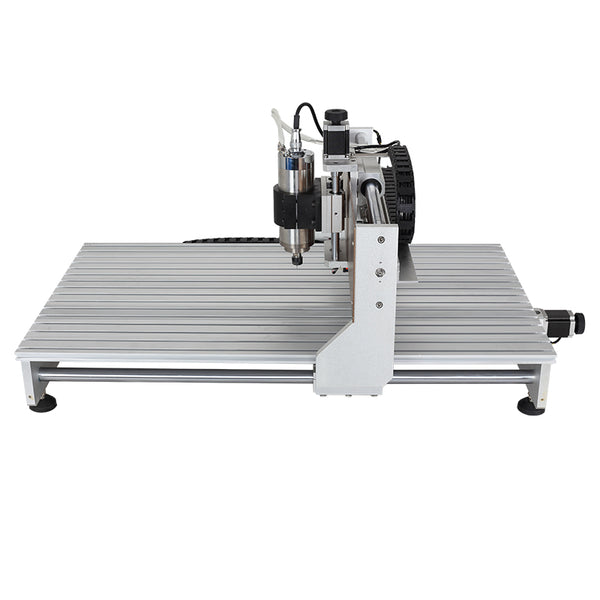

3 Axis CNC router 9060 machine features


  • Powerful 2200W water cooled spindle motor
  • Large working area.
  • With latest DSP controller. Very easy to use. Non need of computer to run the machine.
  • This 3 axis CNC version can updated into 4 axis CNC router easily.(You just need to buy the 4th axis to install than use.)
  • Ball screw high precision.
  • Independent power supply for main board.
  • Limited switch added.
  • Auto-Checking function.
  • Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
  • Complete with water pump.


3 axis CNC 9060 parameters

Effective working travel

600(X)mm*900(Y)mm*150(Z)mm

Shape dimension

890*1250*670mm

Frame materials

Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles.

Axis

3 Axis version

Acceptable material thickness

≤150mm

Driving units

X,Z SFUR1605-DFC7-P0 ball screw, Y SFUR2005-DFC7-P0 ball screw

Sliding units X Axis

Dia.30mm chrome plate shafts

Sliding units Y Axis

Dia.30mm chrome plate shafts

Sliding units Z axis

Dia.16mm chrome plate shafts

Stepping motor type

57 two-phase 3A 150N.cm

Spindle motor

Changlong GDZ80-2.2, 24000RPM, 2200W

Principal axis collet

ER20 1-13mm

Repeat accuracy

0.05mm

Spindle precision

radial beat acuities 0.03 mm

Maximum speed

0-4000mm/min

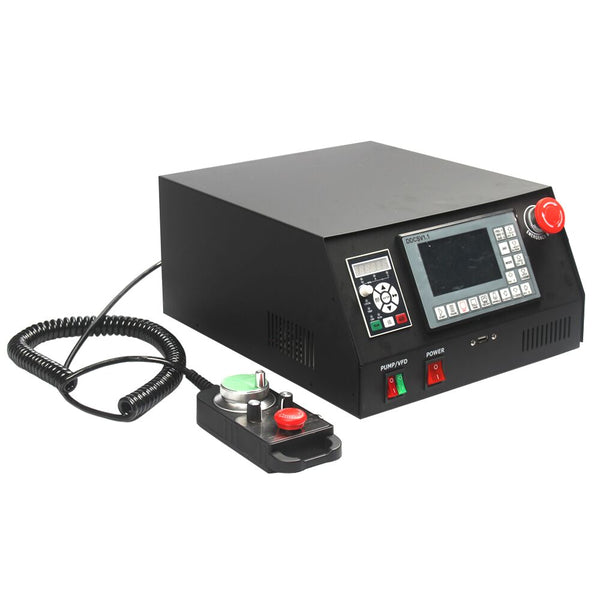

Control unit

E100S2R2B + JMC542 drive board+1635A 4th Axis drive board + DSP Controller

Computer connection

DSP control No need connect computer

Command code

G code, or any MACH3 support format file

Protection

Emergency stop button

Operating Voltage

AC220V

Accessories

Pump, Auto checking tool , cutter, banner and so on.

Warranty

Two Year

Package size

One wooden box package , 121*86*82cm

Gross weight

156KG
