Lathe machine STUDENT SH-750B

Product Code: STUDENT-SH750B

PRICES SHOWN ARE EXCLUDING VAT

Regular price €0,00

Features:

  • Low cost lathe STUDENT SH-750B (750mm between centers) with belt type pulleys speed selection.
  • Very low noise lathe belt drive system.
  • Precision ground and supersonic frequency hardened bed ways.
  • High accuracy.
  • The spindle is supported with precision roller bearing.
  • Safety magnetic switch or lock key switch.
  • 6 speed selection by belt.
  • Many accessories included with the machine.

Standard Accessories that come with the machine

3-Jaw Chuck self centering chuck 125mm diameter
Change Gears Set
Tool Box&Tools
Dead Centers
Splash Guard
Oil Tray
4-Jaw independent Chuck 125mm diameter
Face Plate
Steady Rest
Follow Rest
Foot Stands
Chuck Guard



SPECIFICATIONS
DISTANCE BETWEEN CENTERS 750mm
SWING OVER BED 250mm
SWING OVER CROSS SLIDE 150mm
SPINDLE BORE 21mm

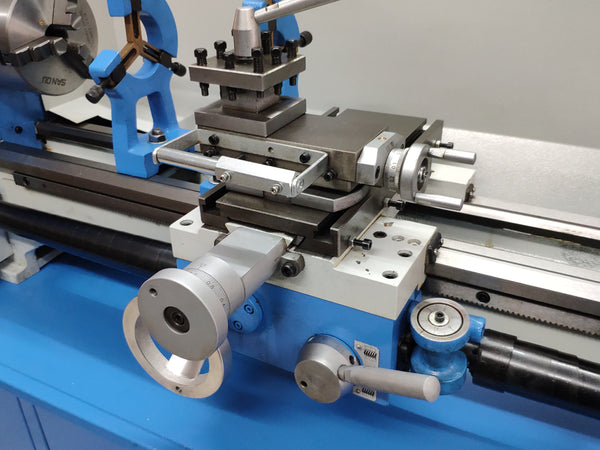

CROSS SLIDE TRAVEL 115mm
COMPOUND TRAVEL 70mm
RANGE OF METRIC THREADS 0.4-3.5mm

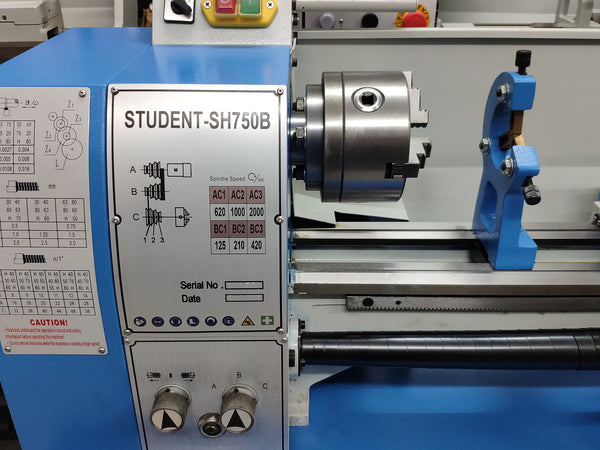

SPINDLE SPEED 6 steps by pulleys belt drive. 125-2000rpm
POWER OF MOTOR 750w(1HP) AC motor brushless
WIDTH OF BED 135mm
TAPER OF SPINDLE BORE MT4
RANGE OF LONGITUDINAL SPEEDS 0.07-0.20mm/rev
RANGE OF IMPERIAL THREADS 8-56TPI

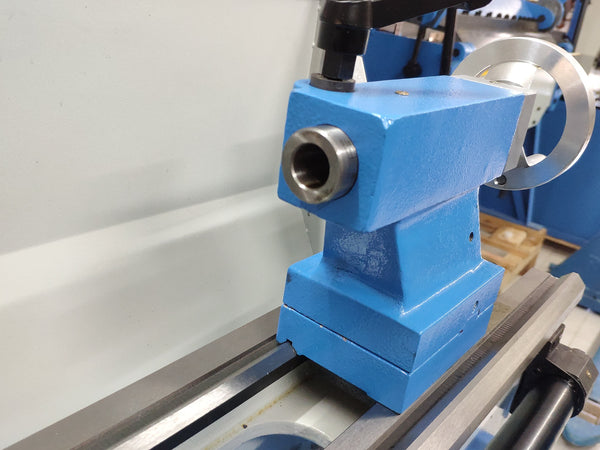

TAILSTOCK QUILL TRAVEL 65mm
TAPER OF TAILSTOCK QUILL MT2
N.W./G.W. 130/165kg
