Gear-Head gap bed Lathe complete with many features including 2 axis DRO.
- Ideal for any training workshops, repair shops, workshops and many other uses.
- Spindle nose fixture D1-4
- Induction hardened bed-ways.

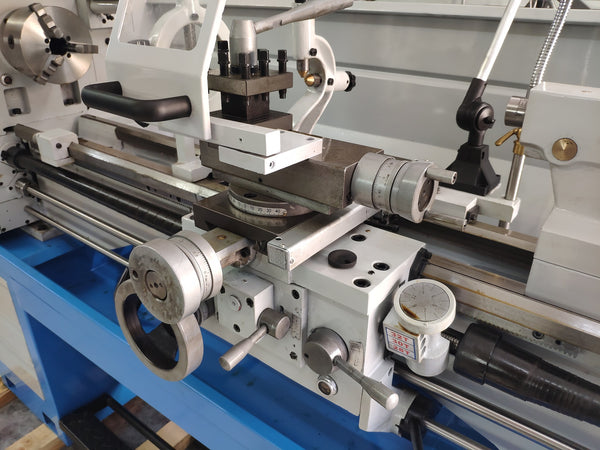

- Automatic cross and longitudinal feeds.
- Hardened and polished gears.
- Complete with all safety features.
- Includes foot brake, coolant system, worklight and many accessories.
- Removable gap-bed for larger diameters.
- Removable chip tray.
- Supplied in single phase or 3 phase.
Standard accessories that come with the machine
- 3 jaw self centering chuck 160mm diameter
- 4 jaw independent chuck 200mm diameter
- face plate
- steady rest
- follow rest
- coolant system
- 2 AXIS DRO
- tool box
- splash guard
- CE safety standards with required safety protections
- lead screw cover
- set of lathe cutting tools
|DISTANCE BETWEEN CENTERS||1000mm|
|SWING OVER BED||320mm|
|SWING OVER CROSS SLIDE||198mm|
|SWING OVER GAP||470mm|
|CROSS SLIDE TRAVEL||160mm|

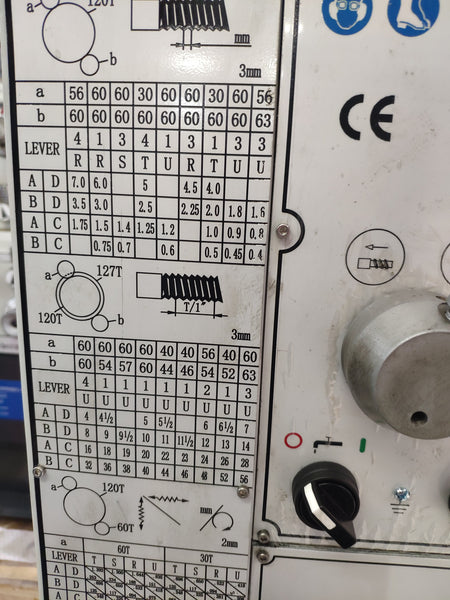

|RANGE OF METRIC THREADS||0.4 - 7mm|
|SPINDLE SPEED||8 steps / 70-2000rpm|
|POWER OF MOTOR||2HP|
|NET WEIGHT||Approx 750kgs|
|TAPER OF SPINDLE BORE||MT5|
|RANGE OF IMPERIAL THREADS||4 - 56tpi|
|TAILSTOCK QUILL TRAVEL||100mm|
|TAPER OF TAILSTOCK QUILL||MT3|
