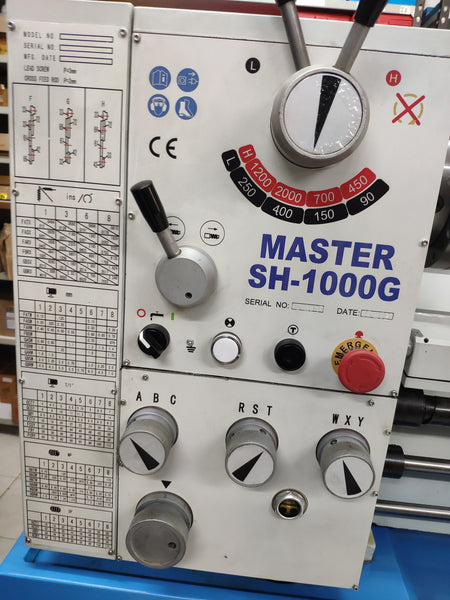

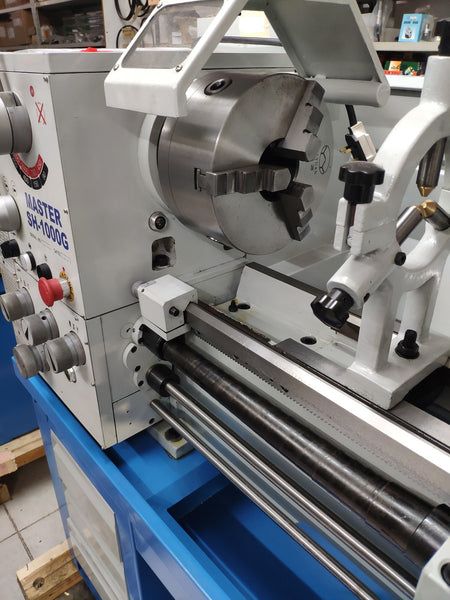

Gear Head gap bed lathe MASTER SH-1000G

Product Code: MASTER SH-1000G

PRICES SHOWN ARE EXCLUDING VAT

Regular price €0,00

New model Precision Gear-Head gap bed Lathe complete with many features including 360mm swing over bed and 52mm spindle bore.

  • Ideal for any training workshops, repair shops, workshops and many other uses.
  • Machine can cut 4 kinds of threads. Metric, inches, diametrical and module pitches.
  • Complete with machine stand.
  • Large 52mm spindle bore.
  • Spindle nose fixture D1-5
  • Automatic cross and longitudinal feeds.
  • Induction hardened bed-ways.
  • Hardened and polished gears.
  • Complete with all safety features.
  • Includes foot brake, coolant system, worklight and many accessories.
  • Removable gap-bed for larger diameters.
  • Removable chip tray.
  • Supplied in single phase or 3 phase.

Standard accessories that come with the machine

  1. 3 jaw self centering chuck 200mm diameter
  2. 4 jaw independent chuck 200mm diameter
  3. face plate
  4. steady rest
  5. follow rest
  6. coolant system
  7. 2 AXIS DRO
  8. tool box
  9. splash guard
  10. CE safety standards with required safety protections
  11. lead screw cover
  12. set of lathe cutting tools



SPECIFICATIONS
DISTANCE BETWEEN CENTERS 1000mm
SWING OVER BED 360mm
SWING OVER CROSS SLIDE 224mm
SWING OVER GAP 500mm
SPINDLE TAPER MT5
TAILSTOCK BARREL TAPER MT3
SPINDLE BORE 52mm
RANGE OF METRIC THREADS (44 kinds) range 0.1-7mm
SPINDLE SPEED 8 steps 70-2000
POWER OF MOTOR 2HP
NET WEIGHT Approx 700kgs
RANGE OF IMPERIAL THREADS (42 kinds) range 4-112tpi
TAILSTOCK QUILL TRAVEL 120mm
