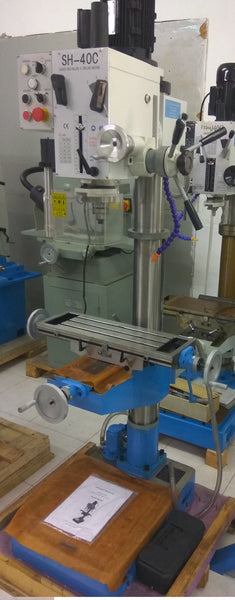

Heavy duty drilling machine with cross table model SH-40C

Product Code: SH-40C

PRICES SHOWN ARE EXCLUDING VAT

Regular price €2.796,61

Heavy duty type drilling machine with cross table

Features:

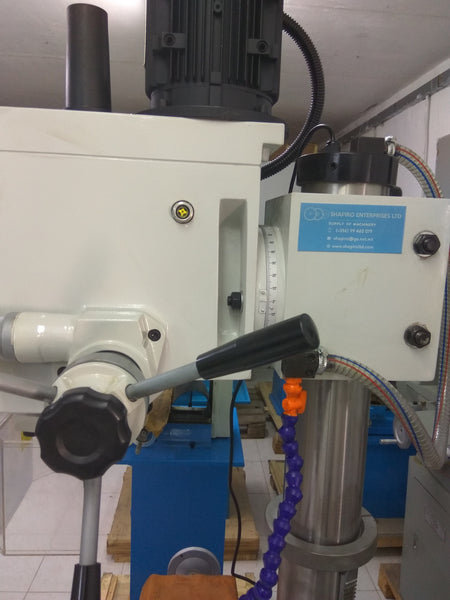

  • Complete with coolant system.
  • With cross table for X and Y axis movement allowing milling operations.
  • Machine can take collet chucks as well taper MT4
  • Table size 730 x 210mm

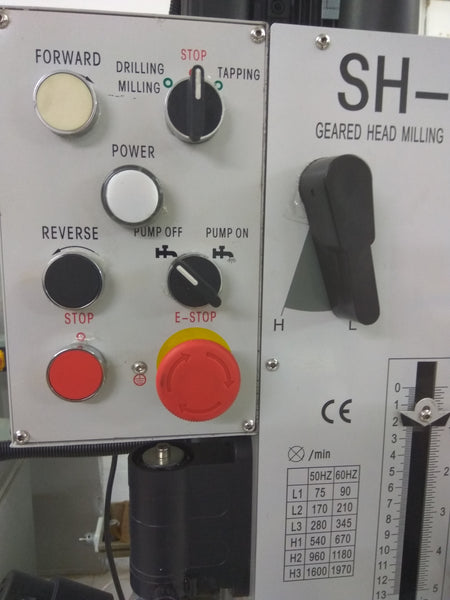

  • Gear head 6 speed selection for maximum torque 75-1600rpm
  • Drilling/milling or Tapping selection.
  • 40mm drilling capacity.
  • Head can tilt both ways for angle drilling.
  • Column diameter 115mm
  • Available in single phase and 3 phase motors.



Standards accessories that come with the machine:

  1. Drill chuck with MT4 arbor.
  2. Coolant pump system.



SPECIFICATIONS
MAX.DISTANCE FROM SPINDLE NOSE TO WORKTABLE 610mm
MAX.TRAVEL OF HEADSTOCK 250mm
MAX.TRAVEL OF WORKTABLE BRACKET 600mm
MIN.DISTANCE FROM SPINDLE AXIS TO COLUMN 283mm
MOTOR POWER 2HP
SWIVEL ANGLE OF HEADSTOCK(HORIZONTAL/PERPENDICULAR) 360degrees+-90degrees
WORKTABLE SIZE 730 x 210mm
SPINDLE TRAVEL 120mm
MAX.DISTANCE FROM SPINDLE NOSE TO STAND TABLE 1180mm
