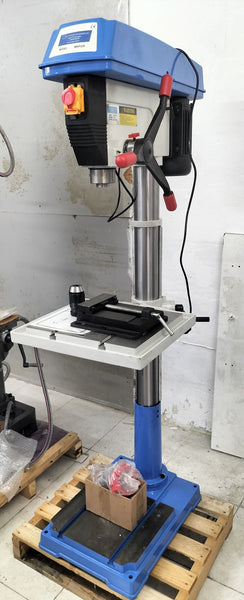

Heavy duty floor stand pillar drill machine.
- 12 speed selection by belt range 150-2450rpm
- Spindle taper MT4
- 32mm drilling capacity.
- 2hp powerful motor.
- Cast iron work table and base.
- Complete with Keyless chuck and 6" vise
|
Model |
WDP32A |
|
Max.drilling(mm) |
32mm |
|
Chuck size(mm) |
1-20mm |
|
Table size(mm) |
420x480mm |
|
Height |
1710mm |
|
Spindle taper |
MT4 |
|
Spindle travel(mm) |
120mm |
|
Distance spindle axis to column surface |
255mm |
|
Spindle speeds range(r.p.m) |
150-2450 |
|
Column dia.(mm) |
92mm |
|
Motor power(W) |
1500w(2HP) |
|
Packing size(mm) |
1415x650x305 |
|
N.W./G.W. |
125/130kg |
