Milling and drilling machine STUDENTM32G

Product Code: STUDENT-M32G

PRICES SHOWN ARE EXCLUDING VAT

Regular price €0,00

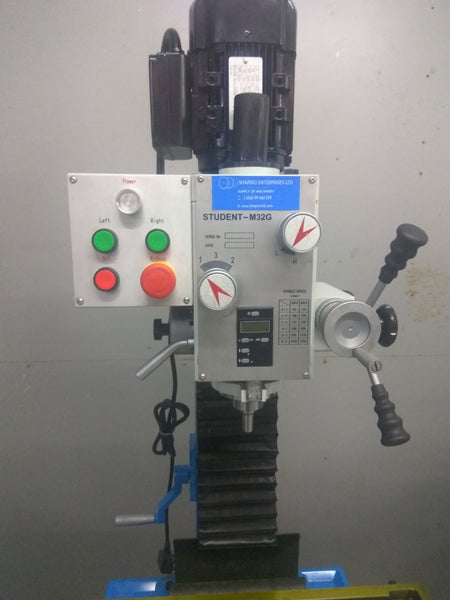

Heavy duty small gear head milling and drilling machine STUDENT-M32G.

  • New design precision milling machine.
  • Perfect for a small workshop which requires a versatile machine but have limited space.
  • Gear head speed selection of 6 steps.
  • Powerful motor.
  • A very affordable machine.

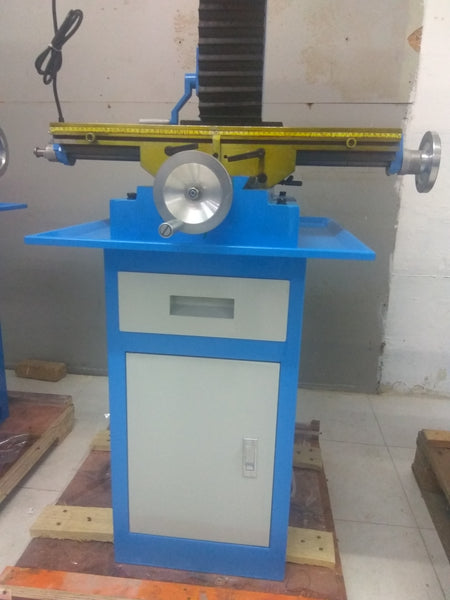

  • Complete with a new design machine stand which includes a drawer and a cabinet to store your tools.
  • Can be used for wide range of applications, milling,drilling, threading etc..

Standard accessories:

  1. Newly designed machine stand with drawer and cabinet.
  2. Drill chuck complete with arbor.
  3. Collet chuck.
  4. 5 endmill cutters.
  5. Digital spindle depth ruler.



SPECIFICATIONS
TABLE SIZE 700x190mm
TILTING HEAD +- 90 degrees
MAX. DRILLING CAPACITY 30mm
MAX. END MILLING CAPACITY 25mm
MAX. FACE MILLING CAPACITY 63mm
DISTANCE FROM SPINDLE NOSE TO TABLE SURFCE 410mm
MOTOR POWER 1hp single phase 240V/50HZ
SPINDLE SPEED 95-1420rpm (6 steps by gear selection)
SPINDLE TAPER MT3
SPINDLE TRAVEL 70mm
X TRAVEL 350mm
Y TRAVEL 190mm
