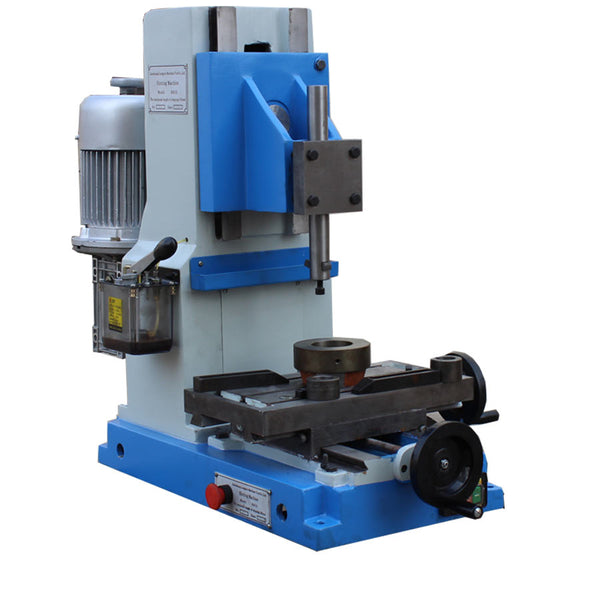

Slotting Machine B5012
Features of Mechanical Slotting Machine.
1. Mechanical Slotting Machine is used for machining the key groove and spline joint during single and small batch production, especially suitable for machining the key groove in blind hole.
2. The assembling of the work piece is not limited by the column, and it is flexible for machining the key groove in large parts.
| Specification | Unit | HC-B5012 |
| Max diameter of workpiece | mm | 420 |
| Max height of workpiece | mm | 120 |
| Max longitudinal travel of worktable | mm | 130 |
| Max cross travel of worktable | mm | 150 |
| Max travel of cutter arbor | mm | 120 |
| Main motor power | kW | 1.1(3phase) |
| Net weight | kg | 196 |
| Gross weight | kg | 220 |
