Milling and drilling machine STUDENT-SH45G

Product Code: STUDENT SH-45G

PRICES SHOWN ARE EXCLUDING VAT

Regular price €2.457,63

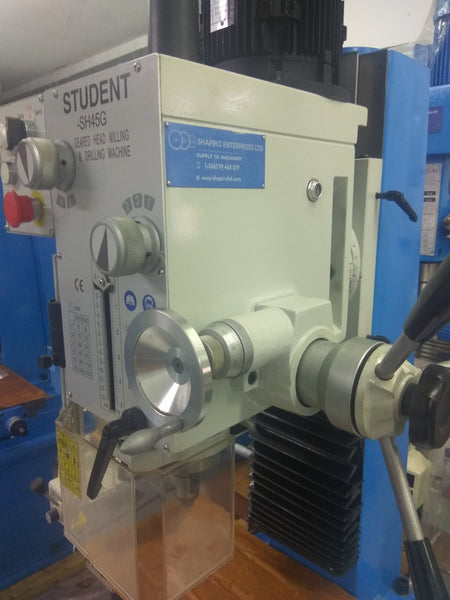

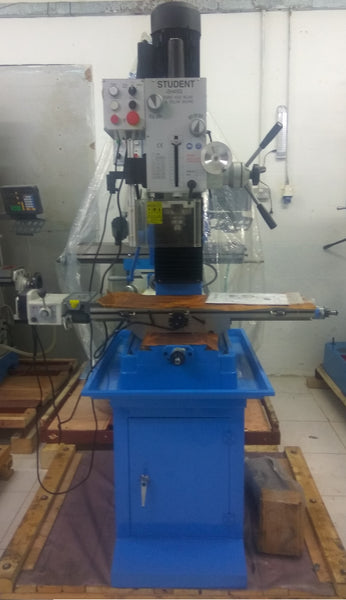

Low cost gear head milling and drilling machine model STUDENT-SH45G.

  • Ideal for small workshops,startup workshops, engineering of parts, training purposes etc...

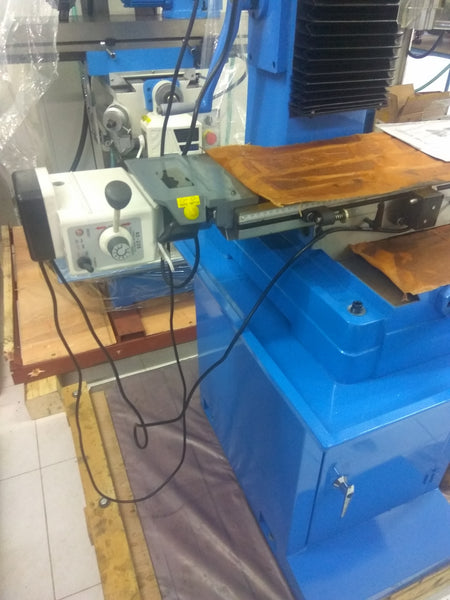

  • Includes X-axis power feed
  • Excellent quality and precision machine
  • Gear head speed selection of 6 steps
  • Complete with stand
  • Max Drilling capacity 45mm
  • Table size 800x240mm

Standard accessories:

  1. Drill Chuck 1-13mm.
  2. Collet chuck.
  3. 5 endmills cutters.
  4. X-axis power feed.



SPECIFICATIONS
MACHINE WEIGHT 330kgs
TABLE SIZE 800x240mm
TILTING HEAD +-90 deg
MAX. DRILLING CAPACITY 45mm(iron)
MAX. END MILLING CAPACITY 32mm
MAX. FACE MILLING CAPACITY 80mm
DISTANCE FROM SPINDLE NOSE TO TABLE SURFCE 460mm
MOTOR POWER 2HP
SPINDLE SPEED 75-1600rpm (6 steps)
SPINDLE TAPER MT4
SPINDLE TRAVEL 120mm
THROAT Distance from spindle to column 260mm
X TRAVEL 500mm
Y TRAVEL 190mm
