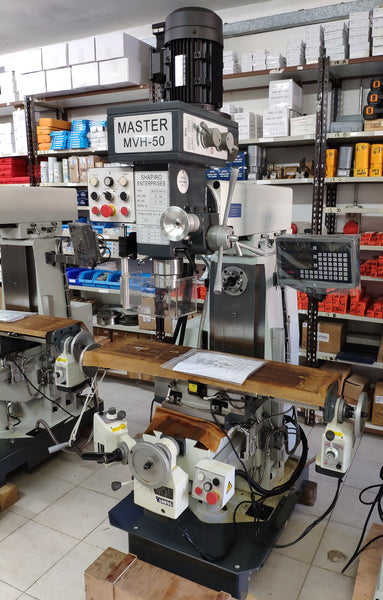

Milling and drilling machine model MASTER-MVH50
- Universal milling and drilling machine.
- A very versatile machine.
- Vertical and horizontal spindle with taper ISO 40
- Tilting head
- Radial movement
- Machine is 3 phase power.

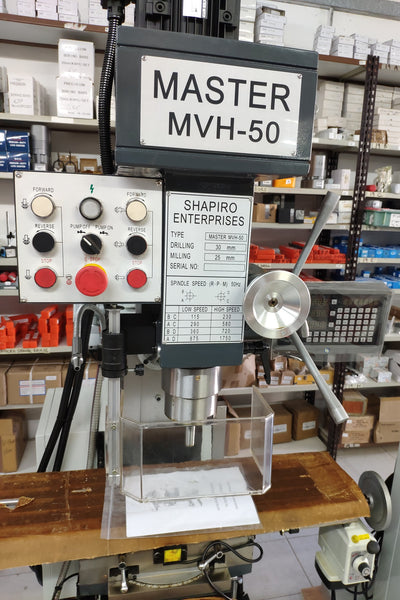

- Vertical gear head speed spindle selection
- Horizontal belt speed spindle selection
- Complete with variable power feeds on X,Y and Z Axis.
STANDARD ACCESSORIES:

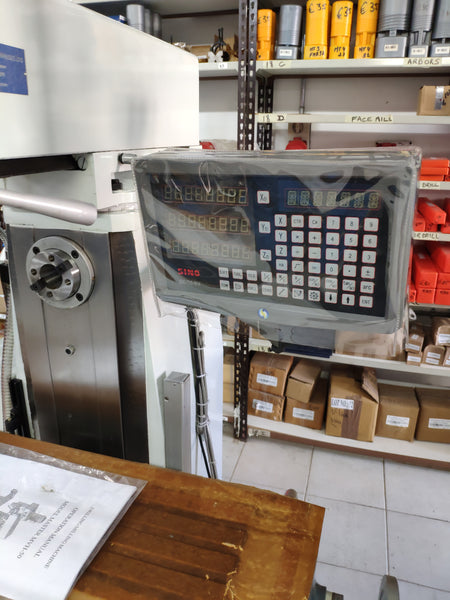

- 3 AXIS DRO

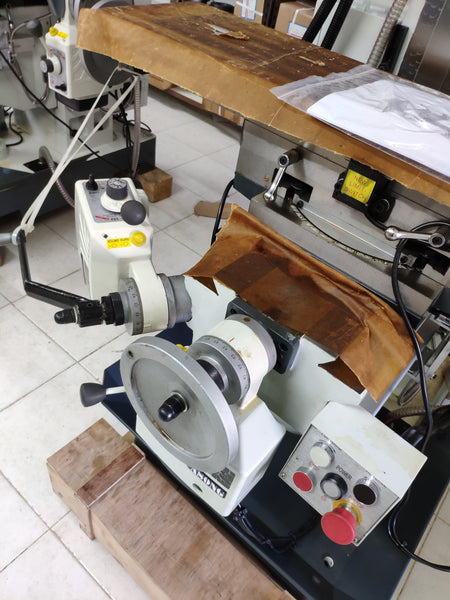

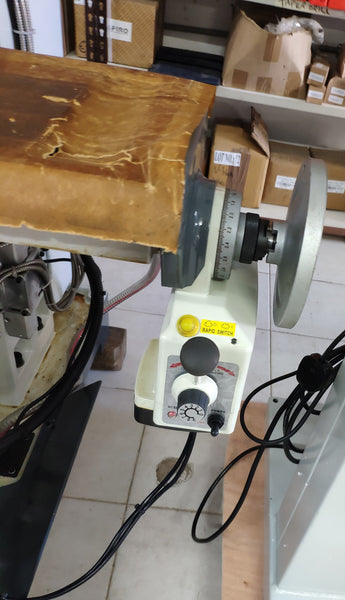

- POWER FEED X AXIS
- POWER FEED Y AXIS
- POWER FEED Z AXIS
- HALOOGEN LAMP
- DRILL CHUCK
- COLLETT CHUCK
- COOLANT PUMP
- ARBORS
| SPECIFICATIONS | |
|---|---|
| MACHINE WEIGHT | 1120kg |
| OVERALL SIZE | 1280x1100x2080mm |
| TABLE SIZE | 1000x240mm |
| MAX. DRILLING CAPACITY | 30mm |
| MAX. END MILLING CAPACITY | 25mm |
| MAX. FACE MILLING CAPACITY | 100mm |
| DISTANCE FROM SPINDLE NOSE TO TABLE SURFCE | 60mm to 440mm |
| MAX. TAPPING CAPACITY | M16 |
| MOTOR POWER | 0.85/1.5 V, 1.5KW H |
| SPINDLE SPEED | 115 to 1750 rpm (Vertical) 58 to1355rpm (Horizontal) |
| SPINDLE TAPER | ISO 40 |
| SPINDLE TRAVEL | 120mm |
| X TRAVEL | 580mm |
| Y TRAVEL | 230mm |
