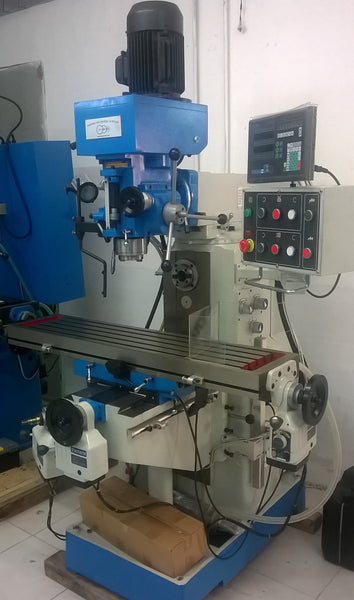

Heavy duty Milling and drilling machine MASTER-PRO MVH50

Product Code: MASTER-PRO MVH50

PRICES SHOWN ARE EXCLUDING VAT

Regular price €0,00

Heavy duty Milling and drilling machine MASTER-PRO MVH50

  • A professional milling machine with many accessories.
  • A very versatile machine.
  • Vertical and horizontal spindle with taper ISO 40
  • Tilting head
  • Radial movement
  • Gear head speed selection for both Vertical and horizontal spindles
  • Auto spindle feed
  • 3 axis variable speed power feeds (X,Y and Z)

STANDARD ACCESSORIES:

  1. 3 AXIS DRO
  2. POWER FEED X AXIS
  3. POWER FEED Y AXIS
  4. POWER FEED Z AXIS
  5. HALOOGEN LAMP
  6. DRILL CHUCK
  7. COLLETT CHUCK
  8. COOLANT PUMP
  9. ARBORS



SPECIFICATIONS
MACHINE WEIGHT 1120kgs
TABLE SIZE 1200x280mm
MAX. DRILLING CAPACITY 30mm
MAX. END MILLING CAPACITY 25mm
MAX. FACE MILLING CAPACITY 125mm
DISTANCE FROM SPINDLE NOSE TO TABLE SURFCE 90-370mm
SPINDLE SPEED Vertical spindle 90-2000rpm (8 steps) Horizontal spindle 48-1350rpm(12steps)
SPINDLE TAPER ISO40
SPINDLE TRAVEL 120mm
THROAT Distance between spindle and column 200-550mm
X TRAVEL 600mm
Y TRAVEL 300mm
