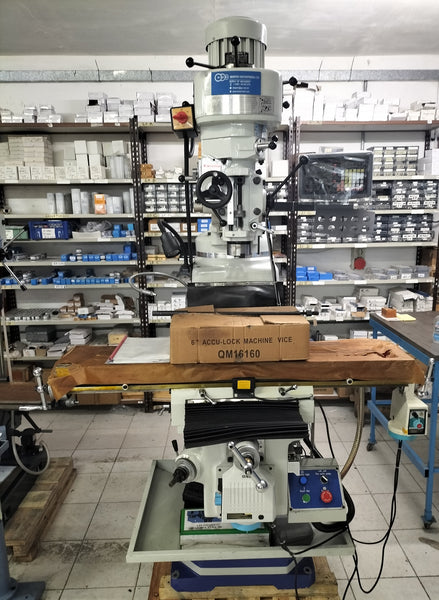

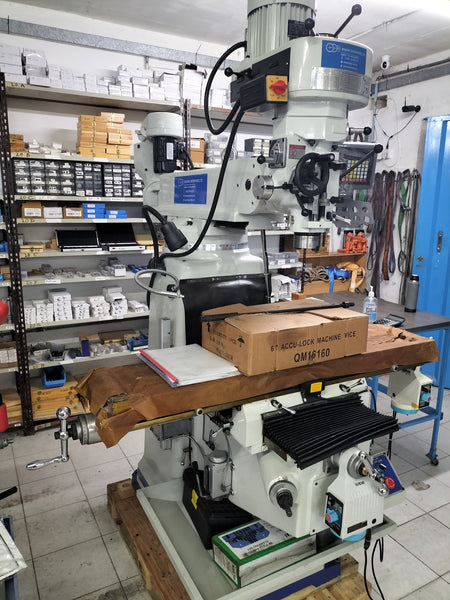

Universal Turret Milling machine model MASTER-6323B
- Universal milling and drilling machine.
- Powerful 3hp motor 3phase 400V
- Complete with slotting attachment.
- Vertical spindle with taper ISO 40
- Tilting head
- Swivel head
- Radial movement
- Automatic spindle feed (selection of 3 speeds)
STANDARD ACCESSORIES:
- 3 AXIS DRO
- POWER FEED X AXIS
- POWER FEED Y AXIS
- LED WORK LAMP
- CENTRAL LUBRICATION OIL PUMP
- DRILL CHUCK
- COLLETT CHUCK
- CLAMPING TOOL SET
- MACHINE VISE
- COOLANT PUMP
| SPECIFICATIONS | |
|---|---|
| MACHINE WEIGHT | 1200Kgs |
| TABLE SIZE | 1246x230mm |
| HEAD SWIVEL | 90 Degrees |
| HEAD TILTING | 45 Degrees |
| T-SLOT NUMBER AND SIZE | 3 X 16MM |
| DISTANCE FROM SPINDLE NOSE TO TABLE SURFCE | 170 to 480mm |
| RAM TRAVEL | 315MM |
| MOTOR POWER | 3HP 3phase 400V 50HZ |
| SPINDLE SPEED | 65-4500RPM (16 STEPS) |
| SPINDLE TAPER | ISO40 |
| SPINDLE TRAVEL | 127mm |
| X TRAVEL | 840mm |
| Y TRAVEL | 305mm |
